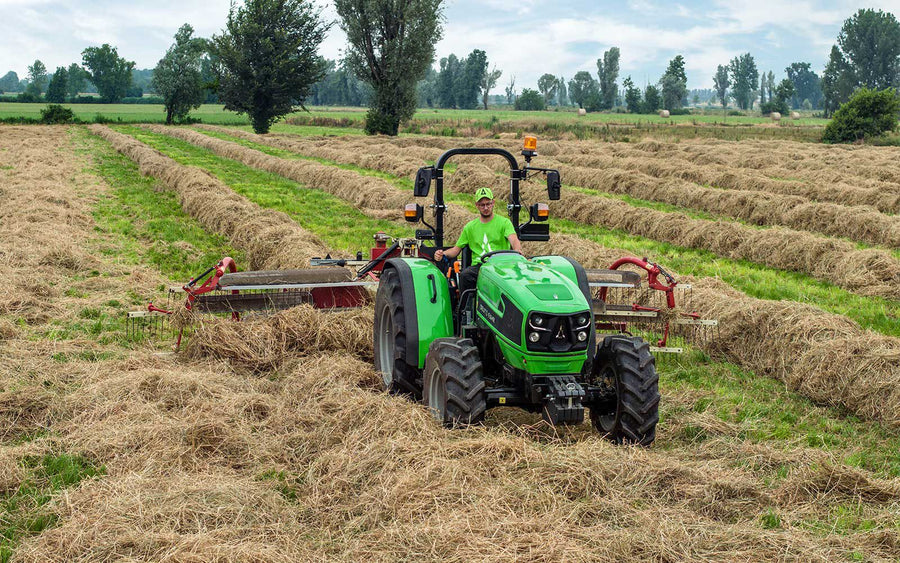

4 Series 4065

The 4 Series tractors are designed as a multi-role utility tractor that are versatile, reliable, and economical. The 4065 features a FARMotion 2.9L 3-cylinder diesel engine with Tier 4 compliance without SCR or DPF – requiring no emissions maintenance for the life of the tractor. A mechanical synchro shuttle with large 12-inch dry disc clutch and 12×12 speeds (4-speed gearbox, 3 ranges) provides reliable operation. The large semi-flat platform has entry from both sides, suspended vinyl seat, adjustable steering column, and folding ROPS. 8.1 gpm hydraulic flow with 2 rear remote valves and up to 3,500 lb rear hitch lift capacity.

• Engine: FARMotion
• Rated / Gross Horsepower: 65 / 65
• Cylinder Displacement: 2.9 liter, 3-cylinder
• RPM at Rated / Gross Power: 2200 / 2000
• Max. Torque: 215 lb-ft @ 1600 RPM
• Fuel Capacity: 14.5 gallons
• Emissions: Tier 4 – No SCR, No DPF
• Transmission: Mechanical synchro shuttle, 12x12 speeds
• Rear Hitch Lift Capacity: up to 3,500 lb
• Hydraulic Flow: 8.1 gpm
• Rear Remote Valves: 2
• PTO: 540 RPM
• Wheelbase: 76.8 inches
• Base Weight: 5,500 lb
• Max. Permissible Weight: 10,550 lb
