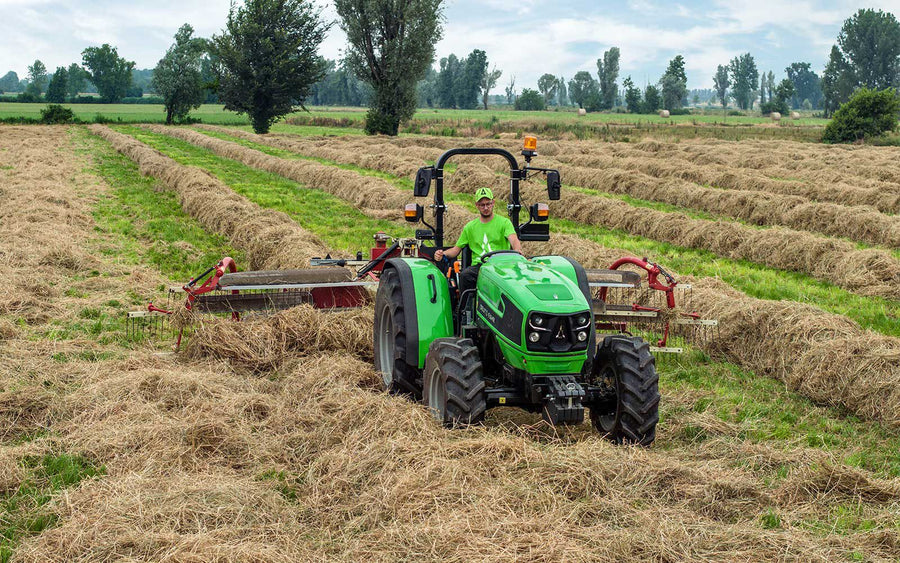

4 Series 4080

The 4 Series tractors are designed as a multi-role utility tractor that are versatile, reliable, and economical. The 4080 GS features a FARMotion 2.9L 3-cylinder diesel engine with Tier 4 compliance without SCR or DPF. The 4080 GS comes with a power shuttle transmission with sensitivity adjustment and Comfort Clutch (acts as electric clutch on gear lever), 15×15 speeds (5-speed gearbox, 3 ranges), and New Stop & Go for clutch-free stopping and resuming. 4WD front axle with integrated front axle brakes. Wet clutch electro-hydraulic engagement rear PTO. Up to 13.2 gpm hydraulic flow. Large semi-flat platform with entry from both sides, suspended vinyl seat, and folding ROPS.

• Engine: FARMotion
• Rated / Gross Horsepower: 75 / 80
• Cylinder Displacement: 2.9 liter, 3-cylinder
• RPM at Rated / Gross Power: 2200 / 2000
• Max. Torque: 252 lb-ft @ 1600 RPM
• Fuel Capacity: 19.8 gallons
• Emissions: Tier 4 – No SCR, No DPF
• Transmission: Power shuttle with Comfort Clutch, 15x15 speeds, Stop & Go
• Rear Hitch Lift Capacity: up to 5,500 lb
• Hydraulic Flow: up to 13.2 gpm
• Rear Remote Valves: 2
• PTO: 540 RPM wet clutch electro-hydraulic
• Wheelbase: 82.6 inches
• Base Weight: 6,600 lb
• Max. Permissible Weight: 10,550 lb
