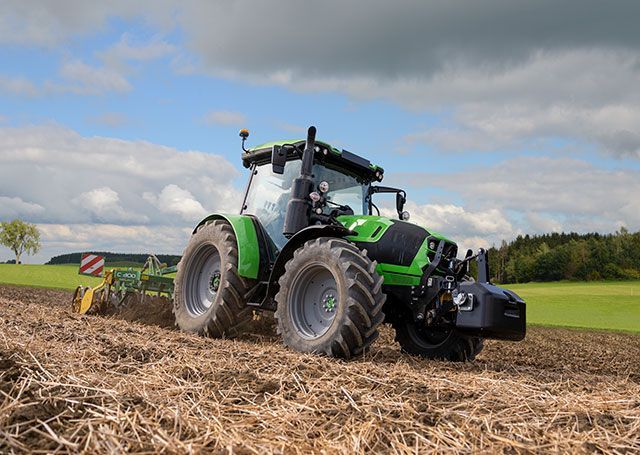

5 Series 5105

The all-new 5 Series is designed for farmers who need a utility tractor that is comfortable, reliable, and powerful all year long. The 5105 features a FARMotion 3.8L 4-cylinder engine delivering 101/106 HP with excellent fuel economy and high torque. Standard equipment includes an electro-hydraulic power shuttle with a sense clutch offering selectable shuttle sensitivity settings. Built-in standard 4-wheel braking, electro-hydraulic 4WD and differential lock, 4-speed rear PTO, and 3 rear spool valves. The spacious cab features excellent visibility, easy-to-reach controls, responsive HVAC system, adjustable steering column, and suspended seat. Industry-leading components with nearly 20 years of service history.

• Engine: FARMotion
• Rated / Max. Horsepower: 101 / 106
• Cylinder Displacement: 3.8 liter, 4-cylinder
• RPM at Rated / Gross Power: 2200 / 2000
• Max. Torque: 313 lb-ft @ 1400 RPM
• Fuel Capacity: 38.3 gallons
• DEF Capacity: 2.6 gallons
• Transmission: Electro-hydraulic power shuttle with Sense Clutch
• Rear Hitch Lift Capacity: up to 11,900 lb
• Hydraulic Flow: 14.5 gpm (double pump)
• Rear Remote Valves: 3
• PTO: 4-speed rear
