Vermeer · Balers

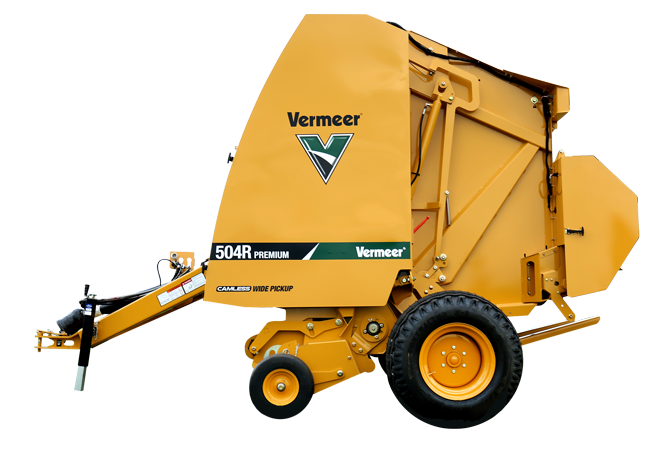

504R Premium Baler
Control and adjust bale shape, net tension and density from the comfort of your cab with the Atlas Pro control system. Operators can rest assured with a 3-year pickup coverage on internal components including parts and labor. HIGH-QUALITY HAY AND SILAGE | MINIMIZED ROUTINE MAINTENANCE | HEAVY-DUTY COMPONENTS | CONFIDENCE IN THE CAB | PEACE OF MIND
- Bale Diameter: 36 in - 60 in (91.4 cm - 152.4 cm)
- Bale Width: 47 in
- Maximum bale weight: 2000 lbs
- Length standard: 156 in
- Length with net: 173 in
- Height: 111 in
- Width with standard tires: 100 in
- Weight fully optioned: 5460 lbs
- Belt Type: Premium mini rough top or endless
- Number of Belts: 6
- Width of Belt: 6.8 in
- Driveline: 540 rpm, extended lube, friction clutch
- PTO horsepower minimum: 55 hp
- PTO horsepower recommended: 65 hp
- Pickup type: Camless wide
- Width tooth to tooth: 60 in
- Tooth Bars: 5
- 3-year pickup warranty: Standard
- Control system: Atlas Pro™
- Display: 7 in color touch screen
- Field Statistics: 50 fields with names
- Netwrap system: Standard
- Bale ramp: Spring-loaded
