Vermeer · Balers

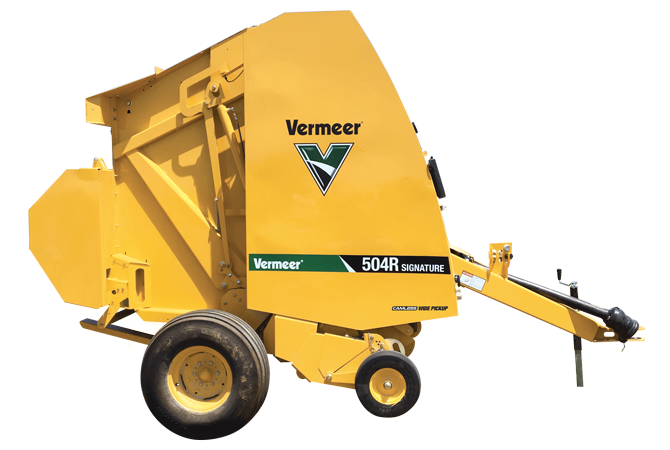

504R Signature Baler
Operators can rest assured with a 3-year pickup coverage on internal components including parts and labor. Real-time moisture sensors come standard on the 504R Signature baler and provide moisture readings via the Atlas Pro™ control system, giving operators access to real-time moisture information in the tractor cab. Control and adjust bale shape, net tension and density from the comfort of your cab with the Atlas Pro control system. PEACE OF MIND | CONFIDENCE IN THE CAB | CONVENIENT OPERATION AND MAINTENANCE
- Bale Diameter: 36 in - 60 in (91.4 cm - 152.4 cm)
- Bale Width: 47 in
- Maximum bale weight: 2000 lbs
- Length standard: 156 in
- Length with net: 173 in
- Height: 107 in
- Width with standard tires: 100 in
- Weight fully optioned: 5400 lbs
- Belt Type: Standard mini rough top
- Number of Belts: 6
- Width of Belt: 6.8 in
- Driveline: 540 rpm, standard lube, friction clutch
- PTO horsepower minimum: 45 hp
- PTO horsepower recommended: 55 hp
- Pickup type: Camless wide
- Width tooth to tooth: 60 in
- Tooth Bars: 5
- 3-year pickup warranty: Standard
- Control system: Atlas Pro™
- Display: 7 in color touch screen
- Field Statistics: 50 fields with names
- Netwrap system: Optional
