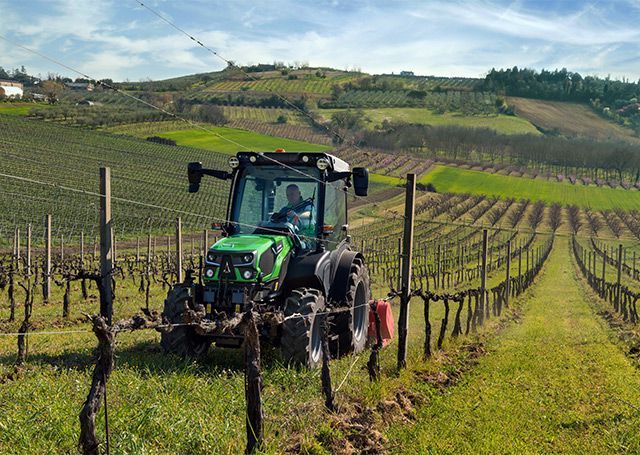

5D F/V Series 5115 DV

The 5D DF/DV Series consists of specialized orchard and vineyard tractors engineered precisely for the purpose. The V configuration offers a low and ultra-narrow profile for the tightest row spacing. The 5115 DV delivers 107/113 HP from a FARMotion 3.85L 4-cylinder engine with high-pressure common rail. Tier 4 compliant without SCR and without a diesel particulate filter. Available in both cab and open station configurations. Available 45×45 powershift transmission. Stop&Go for convenient starting/stopping. Integrated front axle brakes. Choice of hydraulic systems up to 17 gpm.

• Engine: FARMotion
• Rated / Max. Horsepower: 107 / 113
• Cylinder Displacement: 3.85 liter, 4-cylinder
• Bore x Stroke: 4.1 x 4.55 inches
• Common Rail Fuel Pressure: 29,000 PSI
• RPM at Rated / Gross Power: 2200 / 2000
• Max. Torque: 348 lb-ft @ 1400 RPM
• Fuel Capacity: 19.8 gal std (14.5 gal w/ front lift/PTO)
• Emissions: Tier 4 – No SCR, No DPF
• Profile: Low and Ultra-Narrow (V configuration)
• Transmission: 30x15 mechanical shuttle (45x45 powershift available)
• Rear Hitch Lift Capacity: 6,150 lb
• Hydraulic Flow: up to 17 gpm
• Rear Remote Valves: up to 3
• Mid Remote Valves: 2
• PTO: 540/540E/1000 RPM (3-speed available)
• Operator Station: Available cab or open station ROPS
