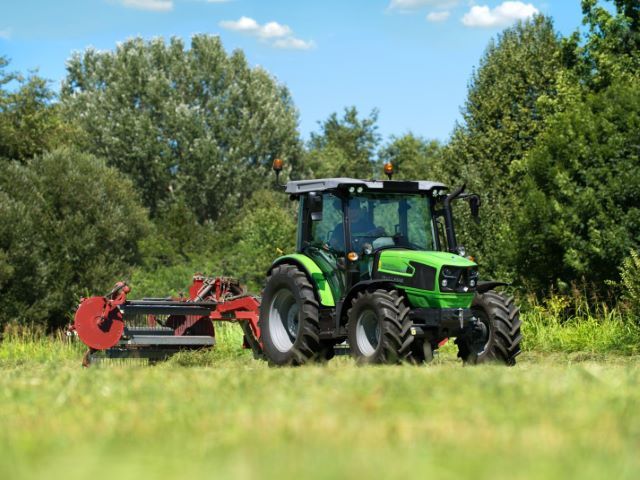

5D Keyline 5080D

The 5D Series tractors are designed as a multi-role utility tractor that are versatile, reliable, and economical. Perfect for livestock operations, haying and property maintenance. The 5080D features a FARMotion 2.9L 3-cylinder diesel engine with Tier 4 emissions compliance without SCR or DPF – requiring no emissions maintenance for the life of the tractor. A mechanical synchro shuttle with large 12-inch diameter dry disc clutch provides smooth reliable operation with 15x15 speeds (5-speed main gearbox, 3 ranges with creeper). The large flat-platform cab has entry from both sides, suspended seat, and training seat. 540 RPM rear PTO with dry clutch and manual hand-lever engagement.

• Engine: FARMotion
• Rated / Gross Horsepower: 75 / 80
• Cylinder Displacement: 2.9 liter, 3-cylinder
• Bore x Stroke: 4.1 x 4.5 inches
• RPM at Rated / Gross Power: 2200 / 2000
• Max. Torque: 252 lb-ft @ 1500 RPM
• Fuel Capacity: 19.8 gallons
• Emissions: Tier 4 – No SCR, No DPF
• Transmission: Mechanical synchro shuttle, 15x15 speeds
• Rear Hitch Lift Capacity: 5,500 lb
• Hydraulic Flow: up to 13.2 gpm
• Rear Remote Valves: 2 standard
• PTO: 540 RPM dry clutch, manual hand-lever
• Wheelbase: 82.6 inches
• Base Weight: 6,800 lb
• Max. Permissible Weight: 10,500 lb
