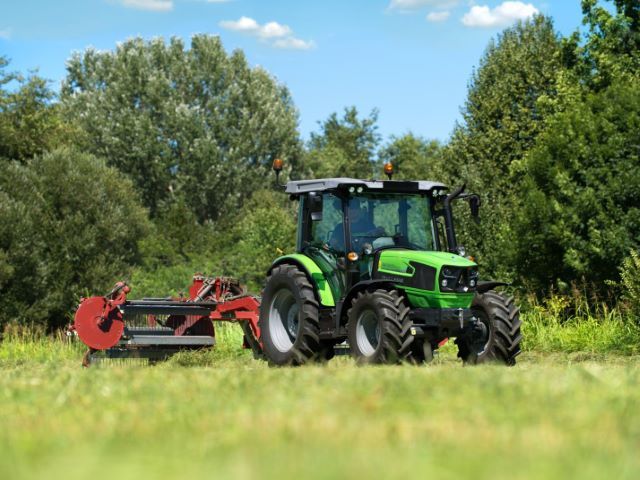

5D Keyline 5100D

The 5D Series tractors are designed as a multi-role utility tractor that are versatile, reliable, and economical. The 5100D delivers 97/102 HP from a FARMotion 2.9L 3-cylinder diesel engine with Tier 4 emissions compliance without SCR or DPF. Larger 23.7-gallon fuel tank compared to the 5080D. A mechanical synchro shuttle with large 12-inch diameter dry disc clutch provides smooth reliable operation. The large flat-platform cab has entry from both sides, suspended seat, and training seat. Designed for livestock operations, haying and property maintenance.

• Engine: FARMotion
• Rated / Gross Horsepower: 97 / 102
• Cylinder Displacement: 2.9 liter, 3-cylinder
• Bore x Stroke: 4.1 x 4.5 inches
• RPM at Rated / Gross Power: 2200 / 2000
• Max. Torque: 307 lb-ft @ 1400 RPM
• Fuel Capacity: 23.7 gallons
• Emissions: Tier 4 – No SCR, No DPF
• Transmission: Mechanical synchro shuttle
• Rear Hitch Lift Capacity: 5,500 lb
• Hydraulic Flow: up to 13.2 gpm
• Rear Remote Valves: 2 standard
• PTO: 540 RPM dry clutch
