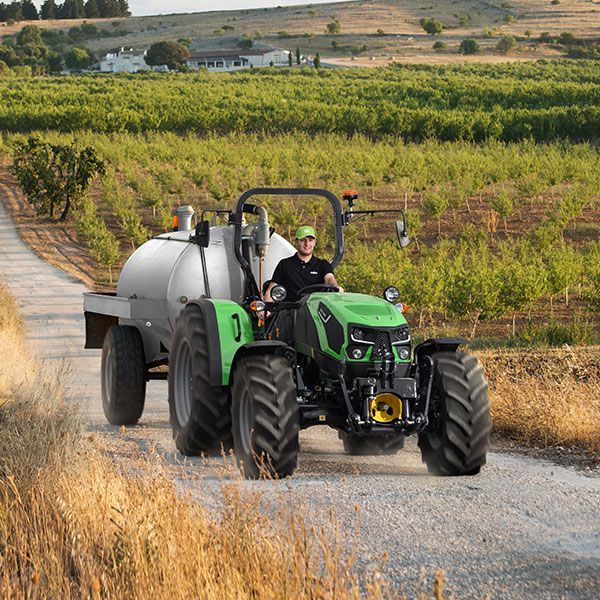

5G TB Series 5115G TB

The 5G TB tractors are built heavy and durable to take on the toughest jobs around the farm. The 5115G TB delivers 110/116 HP from a FARMotion 3.8L 4-cylinder engine, making it the higher-horsepower option in the TB Series for more demanding applications. The low-profile design accesses height-restricted areas such as chicken houses and almond orchards. The driver's platform is mounted on Silent-Blocks for maximum comfort. Hydraulic power shuttle with wet multi-disc clutch, Stop & Go auto de-clutch, 5-speed main gearbox with 4 ranges including creeper. Available 20×20 fully manual or 40×40 gearbox with push-button powershift.

• Engine: FARMotion
• Rated / Max. Horsepower: 110 / 116
• Cylinder Displacement: 3.8 liter, 4-cylinder
• Bore x Stroke: 4.1 x 4.55 inches
• Common Rail Fuel Pressure: 29,000 PSI
• RPM at Rated / Gross Power: 2200 / 2000
• Max. Torque: 348 lb-ft @ 1400 RPM
• Fuel Capacity: 22.5 gallons
• Transmission: Power shuttle with wet clutch; 5 gears x 4 ranges + creeper
• Top Speed: 25 mph
• Rear Hitch Lift Capacity: 7,900 lb
• Hydraulic Flow: 14.9 gpm
• Rear Remote Valves: up to 3
• PTO: 2-speed wet clutch
• Profile: Low profile straddle platform with folding ROPS
