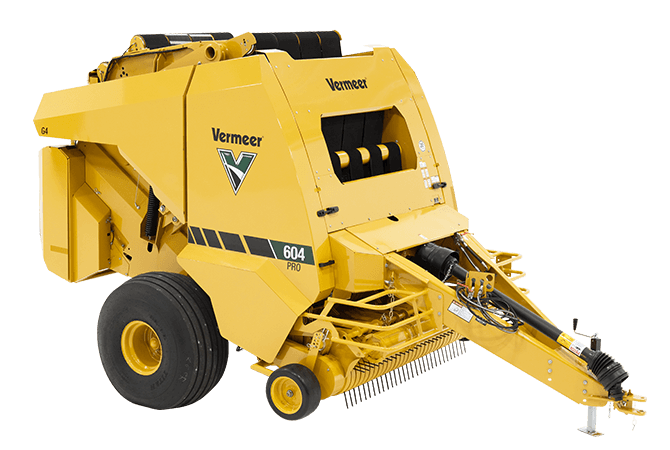

604 Pro G4 Baler
The drop floor flexes during baling to help crop flow into the chamber with ease. Built with few moving parts, the camless wide pickup gets the job done and helps minimize parts cost when it's time for routine maintenance. Control the outcome of the bale from the convenience of the cab with the Atlas Pro™ control system. MORE BALING, LESS MAINTENANCE | BETTER BALES, BETTER NUTRITION | DURABLE COMPONENTS FOR MAXIMIZED LONGEVITY | PEACE OF MIND | SMART FEATURES MAKE BALING SIMPLE
- Bale Diameter: 36 in - 72 in (91 cm - 180 cm)
- Bale Width: 48 in
- Maximum bale weight: 2400 lbs
- Length standard: 213 in
- Height: 120 in
- Width with standard tires: 112 in
- Weight fully optioned: 10500 lbs
- Belt Type: Endless belts
- Number of Belts: 4
- Width of Belt: 11.2 in
- Driveline: 540 rpm or 1,000 rpm, standard lube, cut-out clutch
- PTO horsepower minimum: 90 hp
- PTO horsepower recommended: 120 hp
- Pickup type: Camless wide
- Width tooth to tooth: 73 in
- Tooth Bars: 5
- 3-year pickup warranty: Standard
- Control system: Atlas Pro™
- Display: 7-in color touch screen
- ISOBUS capability: Standard
- Netwrap system: Standard
- Bale ramp: Spring-loaded
