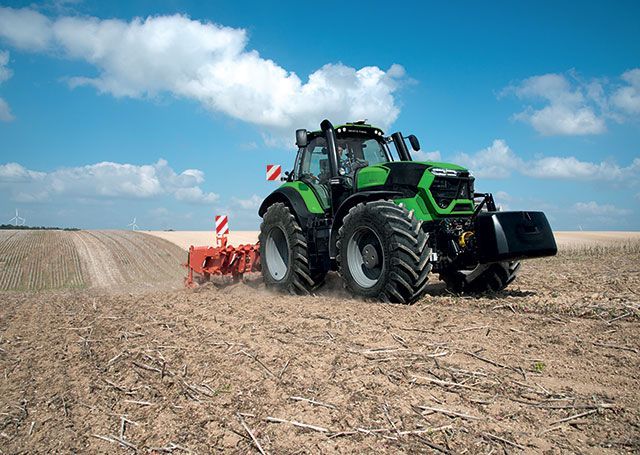

9 Series 9340 TTV

With the 9 Series DEUTZ-FAHR engineers have developed an ultra-modern, highly intelligent, high-horsepower tractor, which performs and increases the operating efficiency largely thanks to unique operating comfort, automated routine functions and the most innovative technologies – and all this while consuming minimal resources. The MaxiVision 2 cab features a new panoramic windscreen, 360° visibility, pneumatic cab suspension, 12" iMonitor2 ISOBUS terminal with Agrosky auto guidance, and a 69 dB noise rating. The Terramatic TTV (ZF) CVT transmission offers infinite precise speeds from 0.12–37 mph. Rear hitch lift capacity: 26,450 lb; front hitch lift capacity: 1,000 lb. High-performance closed-center LS hydraulics with up to 55 gpm flow and up to 6 rear + 2 front electronically controlled remote valves.

• Engine: Deutz
• Gross Horsepower: 336
• Cylinder Displacement: 7.8 liter, 6-cylinder
• RPM at Rated / Max. Power: 2100 / 1900
• Max. Torque: 1011 lb-ft @ 1500 RPM
• Fuel Capacity: 158 gallons
• DEF (AdBlue) Capacity: 14.5 gallons
• Transmission: TTV CVT (Terramatic by ZF)
• Speed Range: 0.12 – 37 mph
• Rear Hitch Lift Capacity: 26,450 lb
• Front Hitch Lift Capacity: 1,000 lb
• Hydraulic Flow: up to 55 gpm
• Rear Remote Valves: up to 6
• Front Remote Valves: 2
• PTO: 3-speed rear (front PTO available)
• Cab Noise Level: 69 dB
• Cab: MaxiVision 2 with iMonitor2 12" ISOBUS terminal
