Bush-Whacker · Brush Cutters

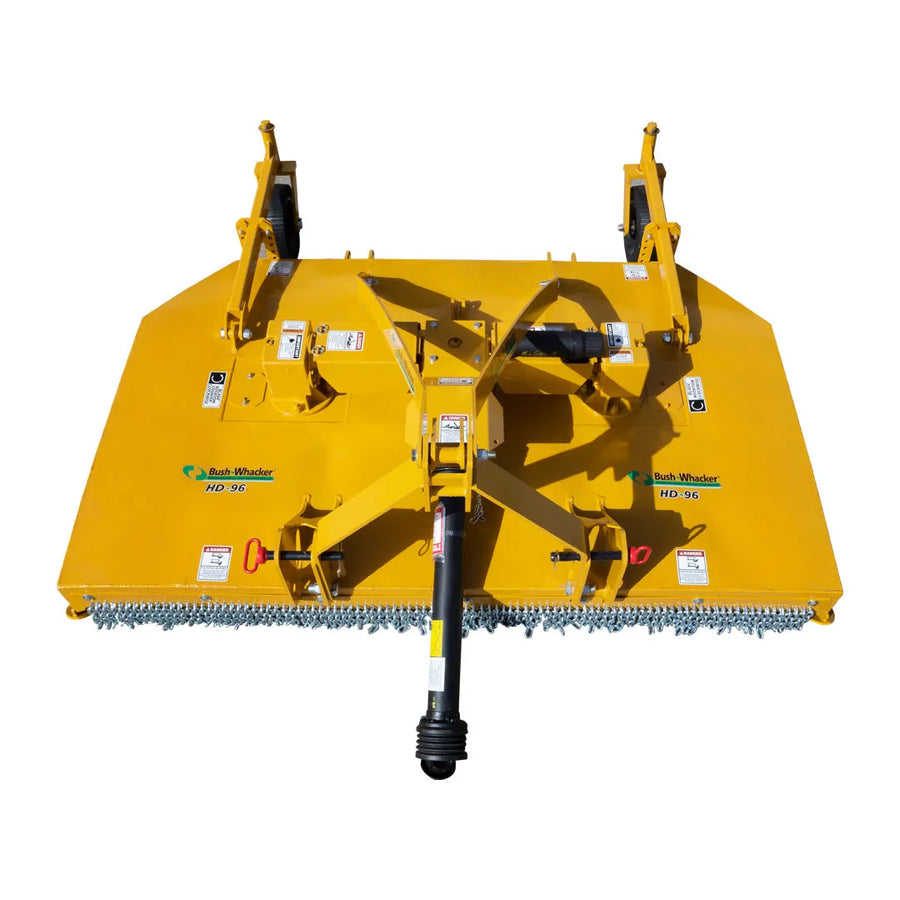

HD-96 (Lift Type)
Bush-Whacker mowers are increasing in demand for agricultural, commercial, and other applications where a heavy-duty, rugged mower is needed. The HD-96 lift type features a 96" cutting width, 160 HP main/transfer box, 120 HP outboard boxes, CAT 5 drive shafts, and 10-gauge T-frame deck. Cutting height adjustable from 2" to 12". Blades are 1/2" x 4" with 4" overlap and bladetip speed of 15,480 FPM. Includes replaceable skid shoes and quick-release guards.
- Model: HD-96
- Cut Width: 96"
- Overall Width: 105"
- HP Required (Min.): 60 HP (lift)
- Gearbox Rating Power Divider: 160 HP
- Gearbox Rating Center & Wing: 120 HP
- Bladetip Speed: 15,480 FPM (540 RPM)
- Cutting Capacity: 3"
- Driveline Size Main: Cat 5
- Cross Shaft: Rubber Disc
- Tires: Grooved Laminated
- Cutting Height: 2"-12"
- Hitch: CAT2 or CAT3
- Tongue Weight: 900 lbs
- Total Weight: 1,920 lbs (lift)
- Side Band: 1/4"
- Blades: 1/2" x 4" Updraft
- Blade Overlap: 4"
- Deck: 10 Gauge
- Stump Jumper Size: 7 Gauge
- Overall Length: 91" (Lift)
- Transport Width: 105"
- Gearbox Warranty: 5 Years
