Bush-Whacker · Brush Cutters

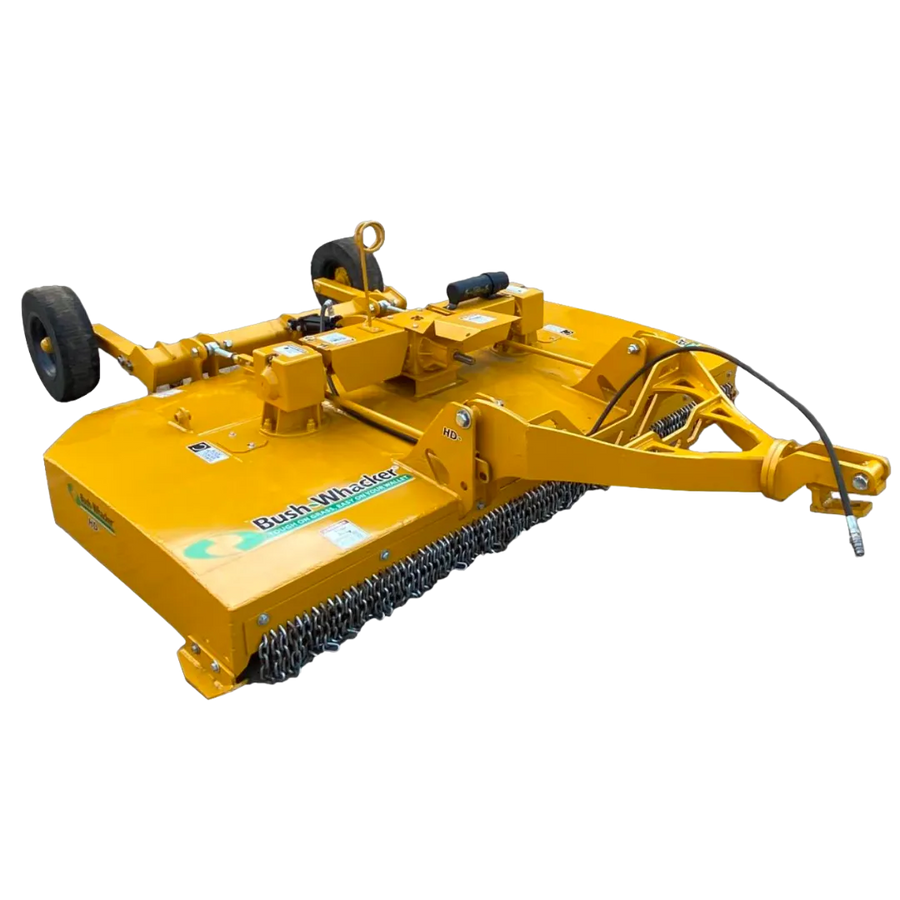

HD-96P (Pull Type)
Bush-Whacker mowers are increasing in demand for agricultural, commercial, and other applications where a heavy-duty, rugged mower is needed. The HD-96P pull type features a 96" cutting width, 160 HP main/transfer box, 120 HP outboard boxes, CAT 5 drive shafts including 80-degree constant velocity main drive shaft, and 10-gauge T-frame deck. Cutting height adjustable from 2" to 12". Includes heavy-duty tongue assembly, hydraulic hose holder, and jack for easy hookup.
- Model: HD-96P
- Cut Width: 96"
- Overall Width: 105"
- HP Required (Min.): 50 HP (pull)
- Gearbox Rating Power Divider: 160 HP
- Gearbox Rating Center & Wing: 120 HP
- Bladetip Speed: 15,480 FPM (540 RPM)
- Cutting Capacity: 3"
- Driveline Size Main: Cat 5
- Cross Shaft: Rubber Disc
- Tires: Grooved Laminated
- Cutting Height: 2"-12"
- Hitch: CAT2 or CAT3
- Total Weight: 2,295 lbs (pull)
- Blades: 1/2" x 4" Updraft
- Blade Overlap: 4"
- Deck: 10 Gauge
- Stump Jumper Size: 7 Gauge
- Transport Width: 105"
- Gearbox Warranty: 5 Years
