Bush-Whacker · Brush Cutters

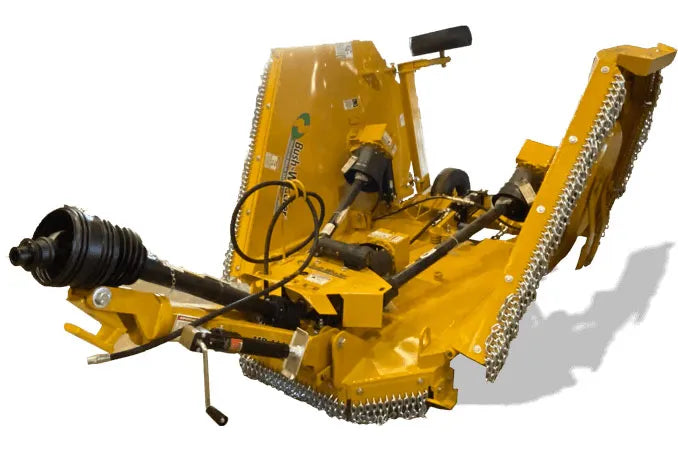

MD-144
The MD-144 is a Flex-Wing unit perfect for tractors running with 35 HP to 70 HP. Whether you are the "weekend farmer" with 10-40 acres looking to reduce cutting time on the weekends or the professional mowing pastures, the MD-144 has what it takes to get the job done. #1 in its class with Cat 4 drivelines, 120 HP gearboxes, and 3" cutting capacity.
- Cut Width: 144"
- HP Required (Min.): 35 HP
- Gearbox Rating Power Divider: 160 HP
- Gearbox Rating Center and Wing: 120 HP
- Gearbox Shaft Input: 1-3/4" 20 Spline
- Gearbox Shaft Output: 2"
- Bladetip Speed: 14,600 FPM (Wing) / 14,181 FPM (Center)
- Cutting Capacity: 3"
- Driveline Size Main: CAT 6
- Driveline Size Wing: CAT 4
- Tires: Laminated or Treaded Laminated
- Cutting Height: 2"-13"
- Hitch: Swivel Clevis
- Tongue Weight: 1,005 lbs
- Total Weight: 3,380 lbs
- Side Band: 3/8"
- Blades: 1/2" x 4" Updraft
- Blade Overlap: 8"
- Deck: 10 Gauge
- Deck Height: 10.5"
- Stump Jumper Size: 3/16" x 26"
- Overall Length: 165"
- Overall Width: 155"
- Transport Width: 96"
- Hydraulics: 4x8" Suspension / 3x8 Wing Cylinder
- Gearbox Warranty: 5 Year Limited
