Bush-Whacker · Brush Cutters

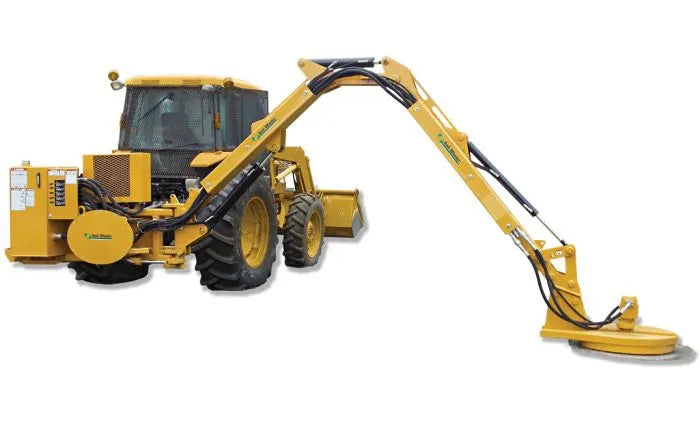

RME-22
22-Foot Rear-Mount Boom Mower. The cutting edge of versatility with all the quality, service, and dependability you've come to expect from a Bush-Whacker. Five-foot brush cutter with a 22-foot boom arm. With advanced joystick controls of four axis of motion. Independent, pressure compensated hydraulic system with load sensing capabilities. A 7" gauge deck with 3/8" side skirts. High-strength steel tubing on primary and dipper booms. Features 3/4" cutting blades with cutting edges on three sides, and a completely self-contained hydraulic system. Two cutting head options available: hinged deck brush cutter or saw blade attachment.
- Hitch Type: CAT II (Quick Hitch adaptable) or CAT III
- Transportation Width: 101"
- Transportation Length: 96"
- Transportation Height: 140"
- Oil Reservoir Capacity: 50 gal.
- Horizontal Reach: 22 ft
- Vertical Reach: 21 ft
- Down Reach: 14 ft
- Front to Back Pitch: 108°
- Operating Pressure: 2,700 PSI
- Pitch of Mower Head: 120°
- Deck Thickness: 7 Gauge
- Skid Shoe Thickness: 3/8"
- Weight: 3,250 lbs (w/o oil)
- Tractor HP Requirements: 90 HP PTO
- Tractor PTO: 540/1,000 RPM
- Cutter Shaft Speed: 980 RPM
- Power: 94 HP at 2,025 RPM
- Hydraulic Pump: Pressure compensated piston-type; 42 GPM
- Primary Boom: 5/16 x 5 x 5 high-strength steel
- Dipper Boom: 5/16 x 4 x 5 high-strength steel
- Cutting Capacity: 5"
- Cutting Width: 60" Rotary
- Saw Blade Attachment: Optional
- Range of Motion: 108°
- Mower Warranty: 1 Year Limited
- Gearbox Warranty: 5 Year Limited
