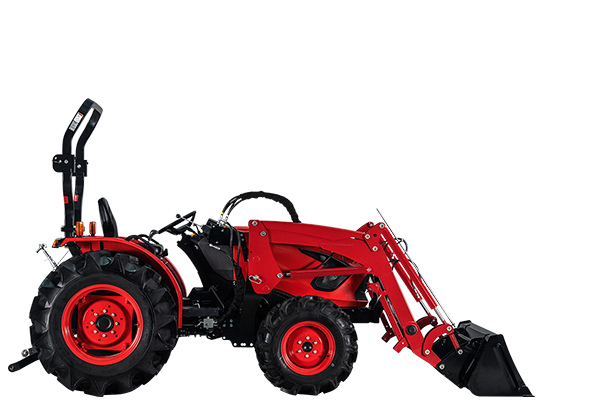

Series 3 3515

The 3515 steps up the Series 3 compact platform to 35 hp while keeping the same compact, maneuverable frame and cast-iron linkages.

• Engine: TYM T1700N2
• Max Horsepower: 35 hp (26.2 kW)
• Displacement: 104.5 cu in | 1714 cc
• Rated Engine Speed: 2600 rpm
• Transmission: 3515R: F12xR12 / 3515H: 3-Range
• PTO: 540 rpm
• Hitch Lift Capacity: 3306 lb (1500 kg)
• Fuel Tank Capacity: 7.1 gal | 27 L
• Overall Length: 120.9 in | 3071 mm
• Weight: 3515R: 3183 lb | 1444 kg; 3515H: 3163 lb | 1435 kg
• Front Tires: 8-16
• Rear Tires: 12.4-24

Note: Specs sourced from the T3025 page's comparison table.
