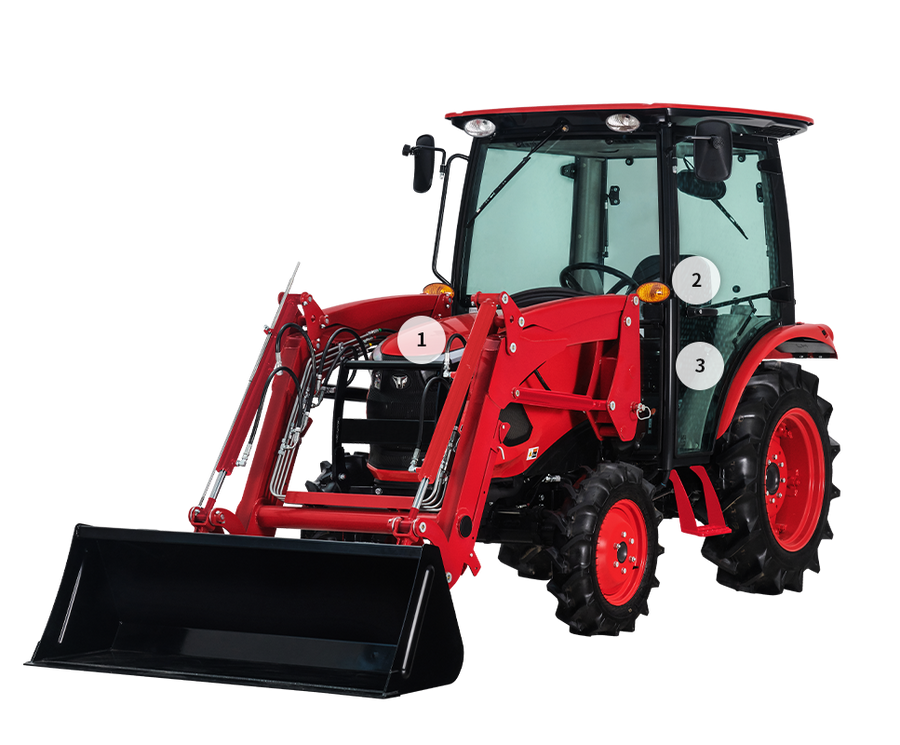

Series 3 3515C

The cabbed 3515C brings enclosed, climate-controlled comfort to the 35 hp Series 3 platform.

• Engine: TYM T1700N2
• Max Horsepower: 35 hp (26.2 kW)
• Displacement: 104.5 cu in | 1714 cc
• Rated Engine Speed: 2600 rpm
• Transmission: 3-Range
• PTO: 540 rpm
• Hitch Lift Capacity: 3306 lb (1500 kg)
• Fuel Tank Capacity: 7.1 gal | 27 L
• Overall Length: 120.9 in | 3071 mm
• Weight: 3552 lb | 1611 kg (w/ cab)
• Front Tires: 7-16
• Rear Tires: 11.2-24

Note: Specs sourced from the T3025C page's comparison table.
