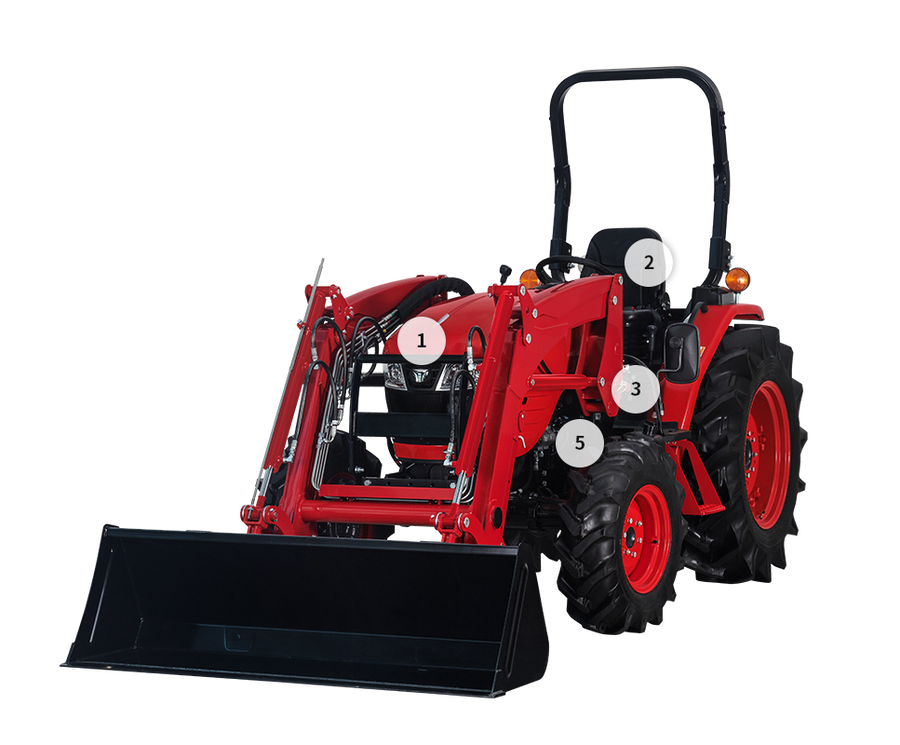

Series 4 5025

Superior performance meets high efficiency in this customizable Series 4 tractor. The T4048 (5025) can be configured to suit your needs and equipped with features designed to ensure your productivity and comfort throughout tasks of varying intensities.

• Engine: TYM T2300N2
• Max Horsepower: 48 hp (36 kW)
• Displacement: 2287 cc | 139.5 cu in
• Rated Engine Speed: 2600 rpm
• Transmission: 5025R: F12xR12 / 5025H: 3-Range
• PTO: 540/540E rpm
• Hitch Lift Capacity: 1456 kg (3210 lb)
• Fuel Tank Capacity: 45 L | 11.9 gal
• Overall Length: 3421 mm | 134.3 in
• Weight: 5025R 1795 kg|3957.3 lb; 5025H 1802 kg|3972.7 lb
• Front Tires: 7-16 6PR / 8-16 4PR / 8-18 8PR / 9.5-16 6PR
• Rear Tires: 12.4-24 6PR / 13.6-24 8PR / 13.6-26 8PR
