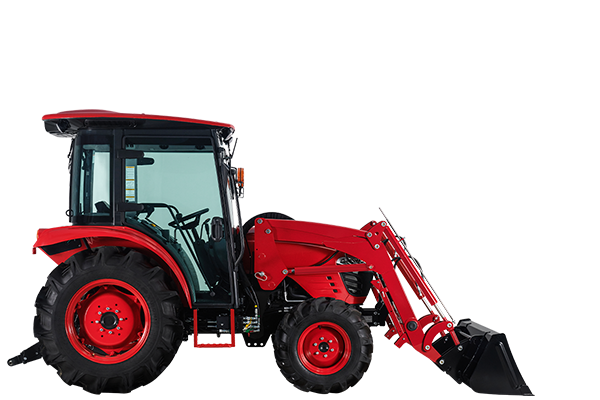

Series 4 5025C

The cabbed 5025C variant offers an enclosed, all-weather operator cabin on the versatile 5025 platform.

• Engine: TYM T2300N2
• Max Horsepower: 48 hp (36 kW)
• Displacement: 2286 cc | 139.5 cu in
• Rated Engine Speed: 2600 rpm
• Transmission: 5025C: F12xR12 / 5025CH: 3-Range
• PTO: 540/540E rpm
• Hitch Lift Capacity: 1456 kg (3210 lb)
• Fuel Tank Capacity: 45 L | 11.9 gal
• Overall Length: 3421 mm | 134.3 in
• Weight: 5025C 2030 kg|4475.4 lb; 5025CH 2026 kg|4466.6 lb
• Front Tires: 7-16 6PR / 8-16 4PR / 8-18 8PR / 9.5-16 6PR
• Rear Tires: 12.4-24 6PR / 13.6-24 8PR / 13.6-26 8PR
