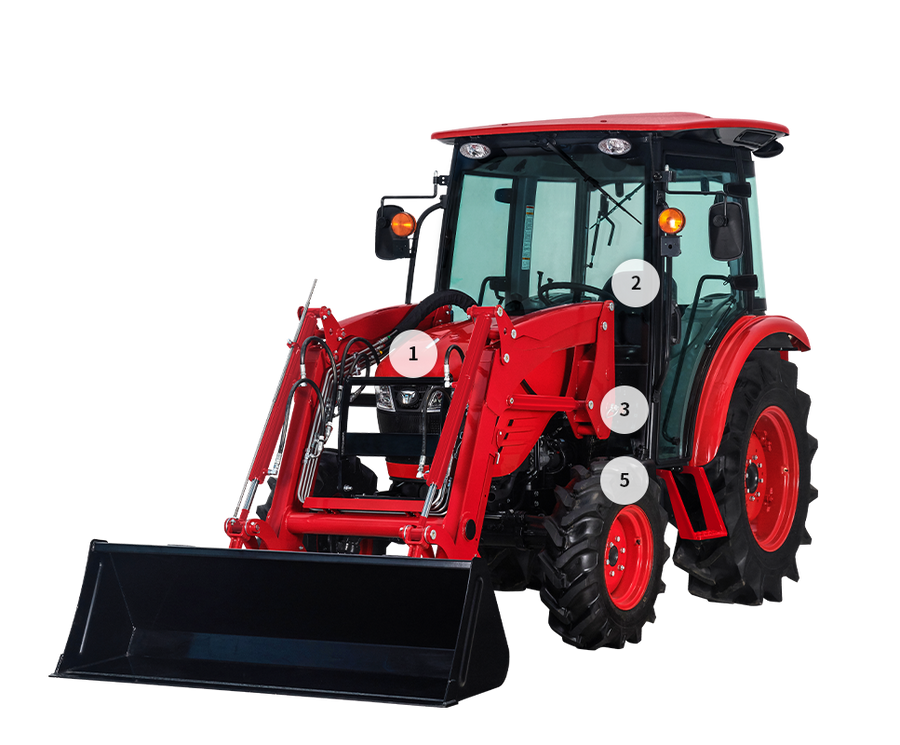

Series 4 5520C

The cabbed 5520C brings enclosed, climate-controlled comfort to the 55 hp Series 4 platform.

• Engine: TYM T2300T3
• Max Horsepower: 55 hp (41 kW)
• Displacement: 139.5 cu in | 2286 cc
• Rated Engine Speed: 2600 rpm
• Transmission: 5520C: F16xR16 / 5520CH: 4-Range
• PTO: 540/750 rpm
• Hitch Lift Capacity: 3306 lb (1500 kg)
• Fuel Tank Capacity: 11.8 gal | 45 L
• Overall Length: 127.4 in | 3236 mm
• Weight: 4349 lb | 1973 kg (w/ cab)
• Front Tires: 9.5-16
• Rear Tires: 13.6-26

Note: Specs sourced from the 5835 page's comparison table.
