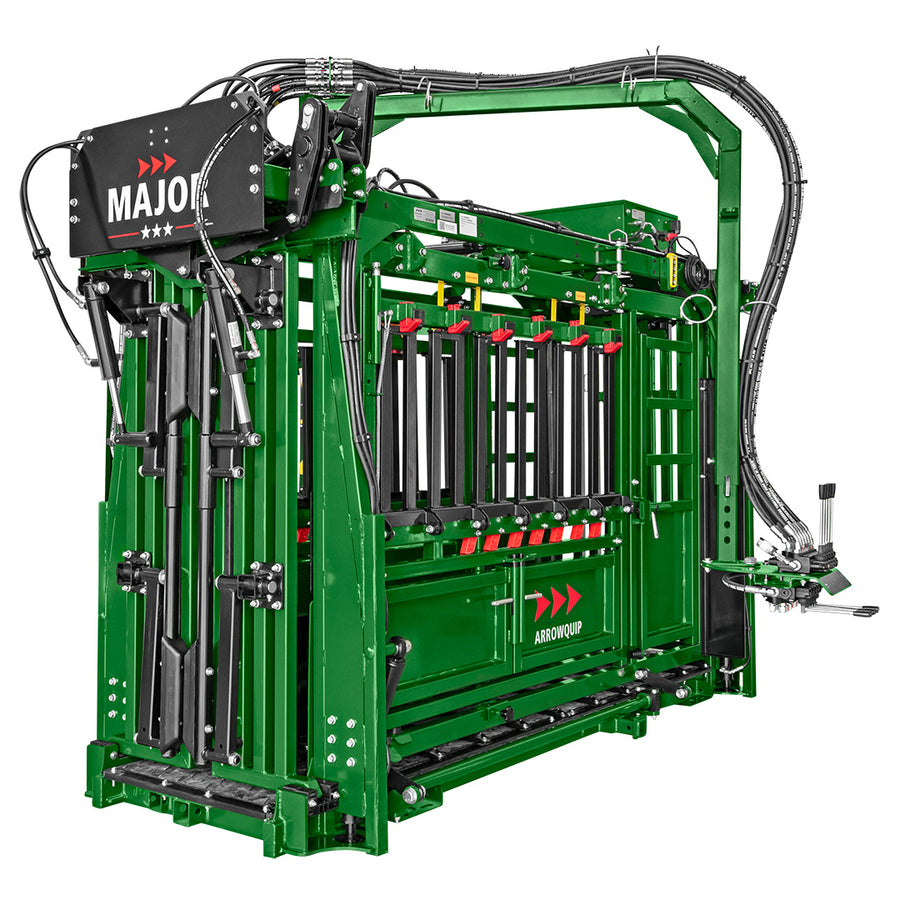

The Major Feedlot Hydraulic Squeeze Chute
Built for operations requiring high throughput and zero excuses, The Major features a reinforced frame, the Army Series Hydraulic Neck Extender (16.8 in of neck access), improved visibility via Arrowquip's 3E technology, and bolt-on wear parts enabling up to 60% quicker repairs versus welding. The design accommodates A, V, and parallel squeeze configurations.
Key Specs:
Weight: 3,900 lbs
Dimensions: 105" W x 101" H x 136"-179" L
Warranty: 2 years
Model Code: MAJ-V2
Add-on options available: 12
Cattle capacity: up to 1,800 lbs
Internal width: up to 31.5 in
Hydraulic PSI setting: 750-1,000 PSI (900 PSI recommended)
